Overview
| Place of Origin: | ZheJiang,China |
| Brand Name: | UNIV |
| Model Number: | UGT-10QL |
| Certification: | CE/ISO9001 |
| Minimum Order Quantity: | 1 unit |
| Delivery Time: | 30-40day |
| Warranty | 1 year |
Quick Detail

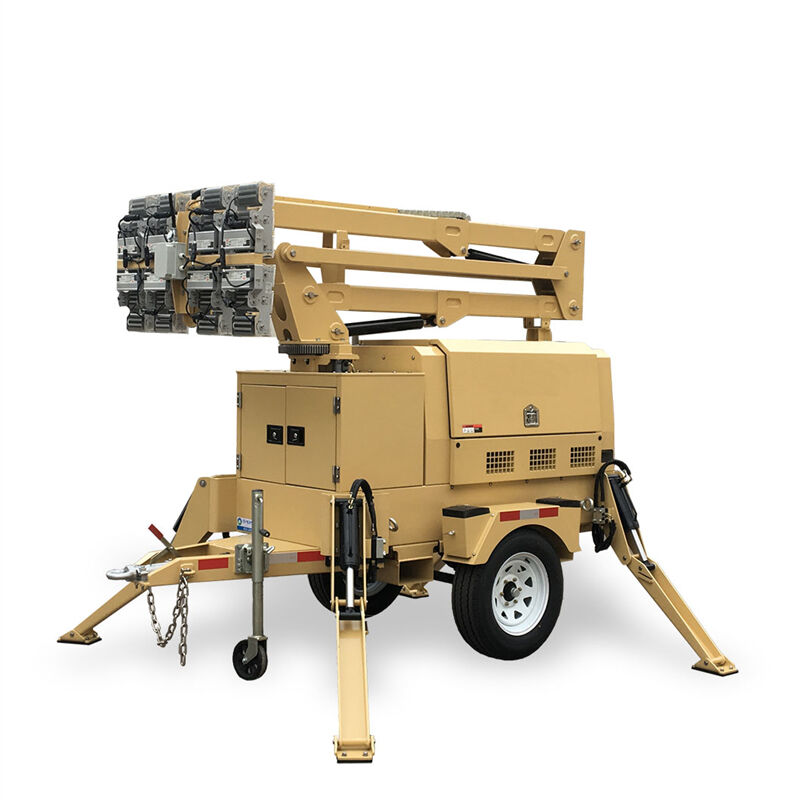

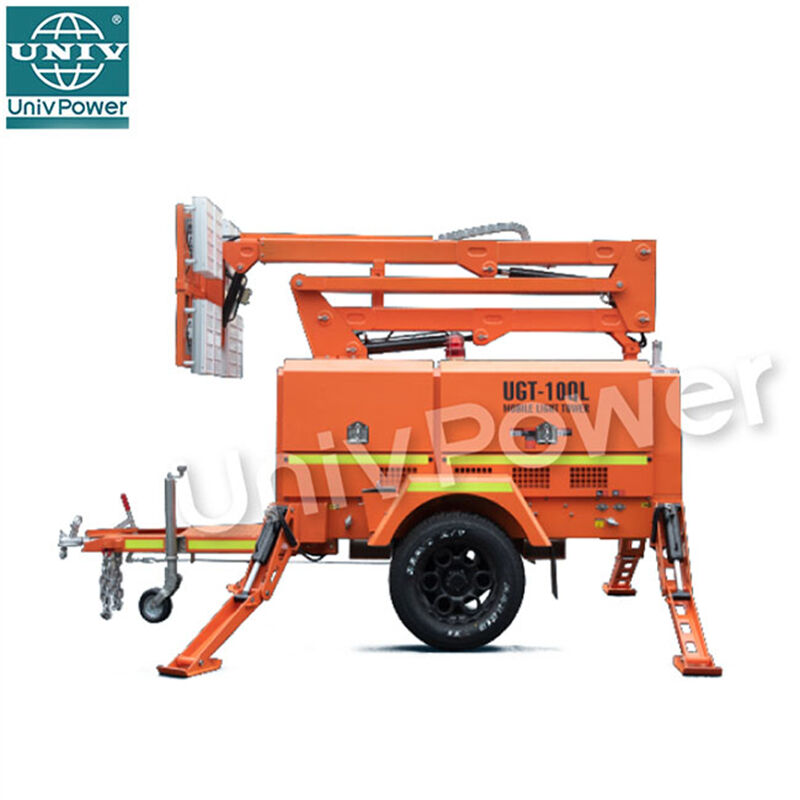

The UGT-10QL lighting tower is designed with safety at its core and built to deliver the highest reliability and enhance productivity to the civil, road construction, mining and rental industries.
Description
1. 8*300w LED lights, Delivering 360,000 lums
2. Heavy duty mast with 360 degree rotation
3. Full bunded design
4. High emission approval
5. Low noise and fuel consumption
6. Australian / European / American standard
Specifications
| MODEL | UGT-10QL | |
| Genset rated Power(KW) | 7 | |
| Dimension | Lenth | 3750mm |
| Width | 1700mm | |
| Height | 2500mm | |
| Height extended fully | 8.5m | |
| Gross Weight | 1920kg | |
| Engine | Engine Model | Perkins 403D-11G |
| Rated Speed(rpm) | 1500/1800 | |
| Cylinder No. | 3 | |
| Engine type | 4 stroke,water-cooled | |
| Air intake methed | Naturally aspirated | |
| Emission | Tier3 | |
| Alternator | Model | MeccAlte LT3N-160/4 |
| Frequency(HZ) | 50/60 | |
| Rated voltage | 230V(50HZ),240(60HZ)AC | |
| Insulation class | Class H | |
| Protection grade | IP23 | |
| Mast and Light | Light type | LED |
| Luminous Flux | 360000 LM | |
| Light Qty x WATT | 8×300W | |
| Mast Type | Hydraulic excavator type | |
| Mast lifting method | Hydraulic | |
| Light Rotation | Electric motor355 degrees | |
| Light Angle Adjust | Electric actuator | |
| Trailer | Suspension | Leaf spring with mechanical braker |
| Towing Bar | Foldable Tow bar with Jockey wheel | |
| Stabilizing Leg | 4Pcs Hydraulic Stabilizing Leg | |
| Rim &Tyre | 15" | |
| Towing coupler | 50mm ball /70mm Ring | |
| Tail Lights | complex tail light | |
| Max Towing speed | 80km/h | |
| Other Item | Fuel Tank Type | Metal |
| Fuel Tank capacity | 300L | |
| Operating hours | 240 Hrs | |
| Controller | Smartgen ALC708 | |
| Output | 2 receptacles | |
| Max.Against Wind | 20 m/s | |
| Noise level dBA@7M | 63dB(A)at 7m | |
| Max.Loading Qty by 40HQ | 5 | |
