Overview
| Place of Origin: | ZheJiang,China |
| Brand Name: | UNIV |
| Model Number: | UN186FA |
| Certification: | CE/ISO9001 |
| Minimum Order Quantity: | 1 unit |
| Delivery Time: | 30-40day |
| Warranty | 1 year |
Quick Detail

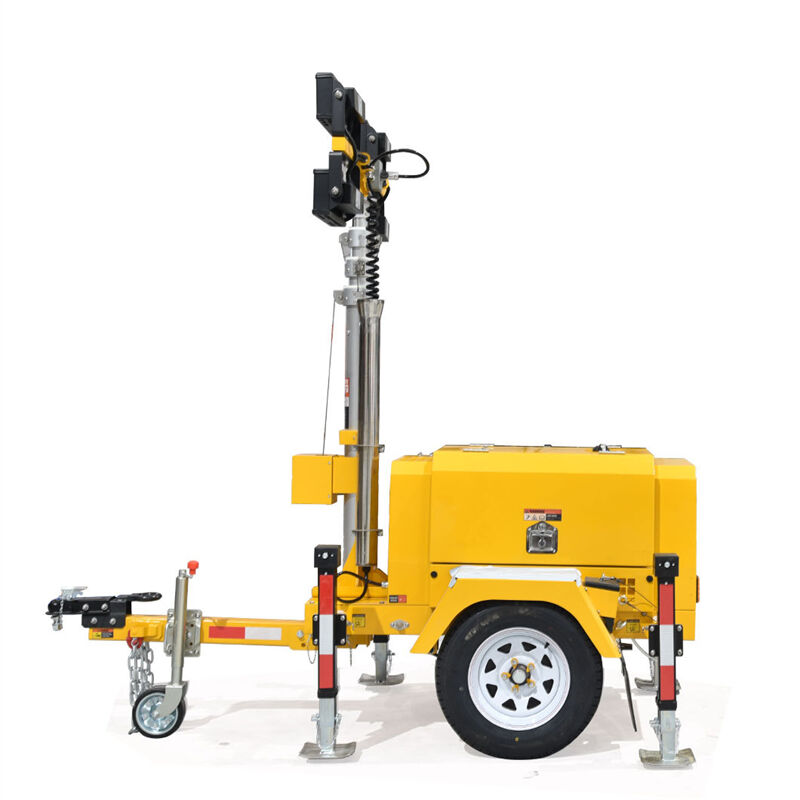

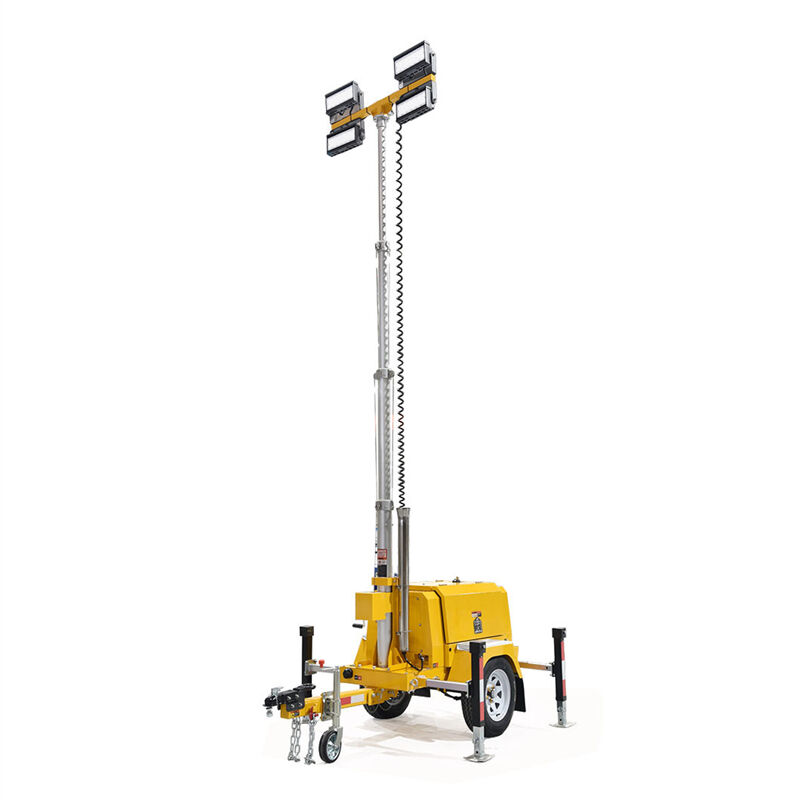

Portable Diesel Lighting Tower
The GDQ5A-4R is a compact portable tower and generator systems designed for smaller work sites, it is an ideal solution for operators who need a fully portable yet easy to operate light system capable of illuminating large areas.
1. 4*400w / 4*300W matel halide lamps
2. 4.5M / 9M high aluminium mast
3. AC power output plugs
4. Low noise and fuel consumption
Description
The GDQ5A-4R Portable Diesel Lighting Tower is a compact and fully portable lighting solution designed for smaller work sites and remote locations. Engineered for ease of operation and mobility, this model provides efficient and reliable illumination while maintaining low fuel consumption and minimal noise levels. Ideal for construction sites, roadworks, events, and emergency operations, it offers powerful lighting in a lightweight and towable design.
Specifications
| MODEL | GDQ5A-4R | |
| Genset rated Power(KW) | 4.5 | |
| Dimension | Lenth | 2378mm |
| Width | 1200mm | |
| Height | 2850mm | |
| Height extended fully | 4.5m | |
| Gross Weight | 610kg | |
| Engine | Engine Model | UN186FA |
| Rated Speed(rpm) | 3000/3600 | |
| Cylinder No. | 1 | |
| Engine type | 4 stroke,air-cooled | |
| Air intake methed | Naturally aspirated | |
| Emission | Non-emission | |
| Alternator | Model | UN4.5 |
| Frequency (HZ) | 50/60 | |
| Rated voltage | 220/110V(50HZ),240/120(60HZ)AC | |
| Insulation class | Class H | |
| Protection grade | IP23 | |
| Mast and Light | Light type | LED |
| Luminous Flux | 180000 LM | |
| Light Qtyx WATT | 4×300W | |
| Mast Sections | 4 | |
| Mast lifting method | Manual | |
| Mast Rotation | / | |
| Light Angle Adjust | Manual | |
| Trailer | Suspension | Leaf spring without braker |
| Towing Bar | Foldable Tow bar with Jockey wheel | |
| Stabilizing Leg | 4Pcs Manual Stabilizing Leg | |
| Rim &Tyre | 14" | |
| Towing coupler | 50mm ball/70mm Ring | |
| Tail Lights | Reflector | |
| Max Towing speed | 80km/h | |
| Other Item | Fuel Tank Type | Metal |
| Fuel Tank capacity | 15L | |
| Operating hours | 10 Hrs | |
| Control panel | Key start | |
| Output | 2 receptacles | |
| Max.Against Wind | 20 m/s | |
| Noise level dBA@7M | 65dB(A)at 7m | |
| Max.Loading Qty by 40HQ | 18 | |
