Overview
| Place of Origin: | ZheJiang,China |
| Brand Name: | UNIV |
| Model Number: | X-CUBE |
| Certification: | CE/ISO9001 |
| Minimum Order Quantity: | 1 unit |
| Delivery Time: | 30-40day |
| Warranty | 1 year |
Quick Detail

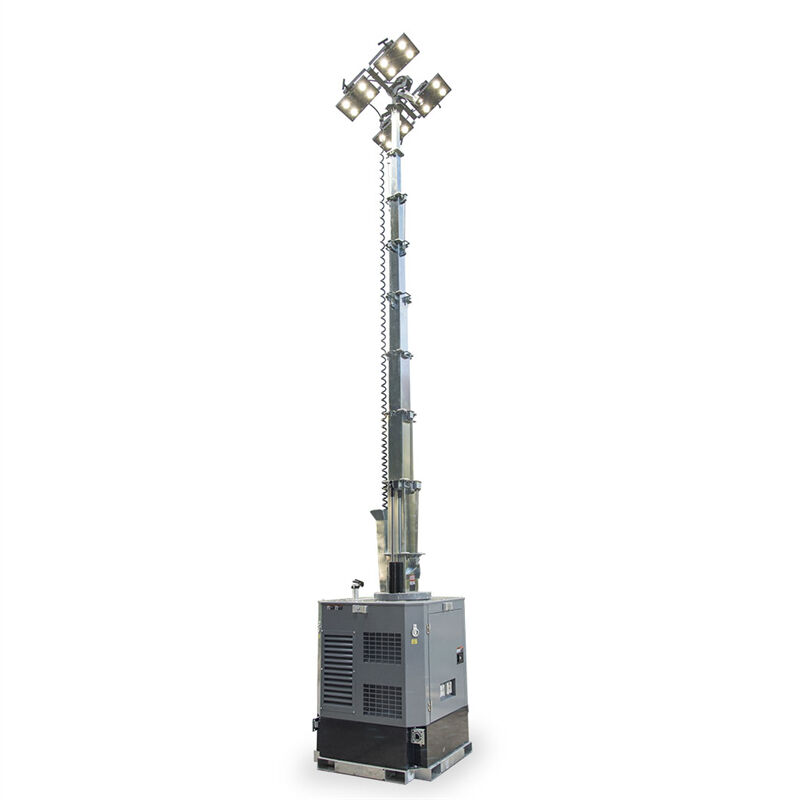

The X-CUBE Towable Lighting Tower is a highly efficient and compact lighting solution designed for demanding environments. With its powerful LED illumination, robust construction, and advanced hybrid technology, this model ensures exceptional performance in construction sites, mining operations, and emergency response scenarios. The X-CUBE Hybrid variant features a 5kWh LFP battery, extending operational hours to 120 hours, making it an eco-friendly and cost-effective choice.
Description
Powerful LED Lighting: Equipped with 4×500W LED lights, delivering 210,000 lumens for superior brightness.
Hybrid Technology (X-CUBE Hybrid Only): Integrated 5kWh LFP battery, extending operational hours up to 120 hours.
Heavy-Duty Hydraulic Mast: 9-section mast, fully extendable to 9 meters, with 355-degree electric rotation for optimal lighting coverage.
Fuel Efficiency & Low Emissions: Powered by a Perkins 403D-11G engine, compliant with Tier 3 emission standards.
Compact & Portable: 1180mm × 1180mm footprint, making it easy to transport and set up.
Enhanced Wind Resistance: Designed to withstand wind speeds up to 20 m/s.
Low Noise Operation: 63dB(A) at 7m, ensuring minimal disruption in noise-sensitive environments.
Specifications
| MODEL | X-CUBE | X-CUBE HYBRID | |
| Genset rated Power(KW) | 6 | 6 | |
| Dimension | Lenth | 1180mm | 1180mm |
| Width | 1180mm | 1180mm | |
| Height | 2684mm | 2684mm | |
| Height extended fully | 9m | 9m | |
| Gross Weight | 1100kg | 1100kg | |

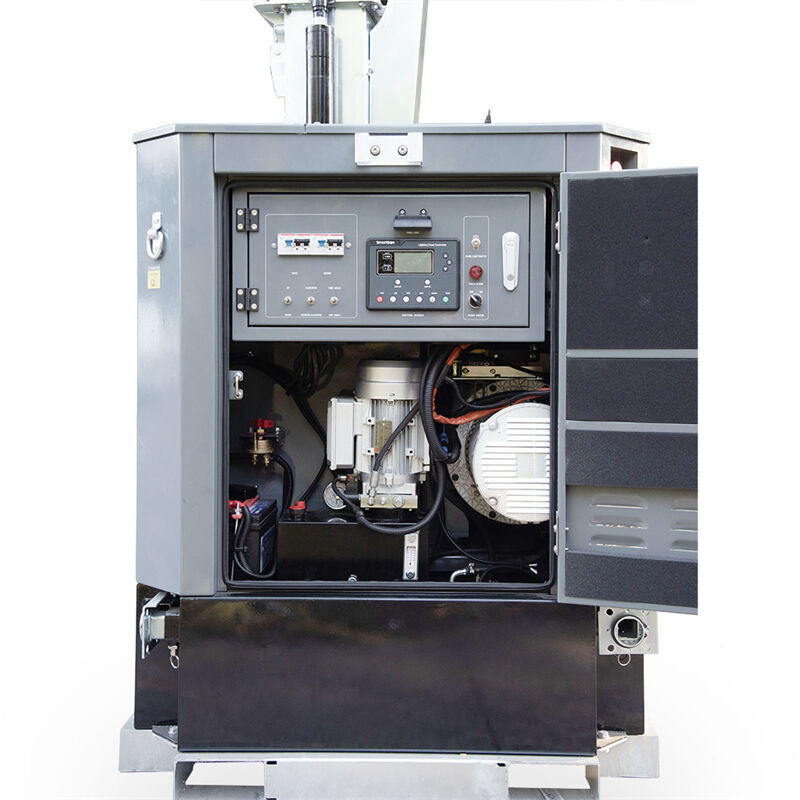

| Engine | Engine Model | Perkins 403D-11G | Perkins 403D-11G |
| Rated Speed(rpm) | 1500/1800 | 1500/1800 | |
| Cylinder No. | 3 | 3 | |
| Engine type | 4 stroke,water-cooled | 4 stroke,water-cooled | |
| Air intake methed | Naturally aspirated | Naturally aspirated | |
| Emission | Tier3 | Tier3 | |
| Alternator | Model | MeccAlte LT3N-130/4 | MeccAlte LT3N-130/4 |
| Frequency(HZ) | 50/60 | 50/60 | |
| Rated voltage | 230V(50HZ),240(60HZ)AC | 230V(50HZ),240(60HZ)AC | |
| Insulation class | Class H | Class H | |
| Protection grade | IP23 | IP23 | |
| Battery | Battery Type | / | LFP |
| Battery Capacity | / | 200AH 25.6V | |
| / | 5KW.H | ||
| Mast and Light | Light type | LED | LED |
| Luminous Flux | 210000 LM | 210000 LM | |
| Light Qtyx WATT | 4×500W | 4×500W | |
| Mast Sections | 9 | 9 | |
| Mast lifting method | Hydraulic | Hydraulic | |
| Light Rotation | Electric motor 355 degrees | Electric motor 355 degrees | |
| Light Angle Adjust | Electric actuator | Electric actuator | |
| Other Item | Fuel Tank Type | Metal | Metal |
| Fuel Tank capacity | 100L | 100L | |
| Operating hours | 80 Hrs | 120 Hrs | |
| Controller | Smartgen ALC708 | Smartgen ALC708 | |
| Output | 2 receptacles | 2 receptacles | |
| Max.Against Wind | 20 m/s | 20 m/s | |
| Noise level dBA@7M | 63dB(A)at 7m | 63dB(A)at 7m | |
| Max.Loading Qty by 40HQ | 20 | 20 | |
