Overview
| Place of Origin: | ZheJiang, China |
| Brand Name: | UNIV |
| Model Number: | UGY100PS |
| Certification: | CE/ISO9001 |
| Engine Brand: | Perkins |
| Minimum Order Quantity: | 1 unit |
| Delivery Time: | 30-40day |
| Warranty | 1 year |
Quick Detail

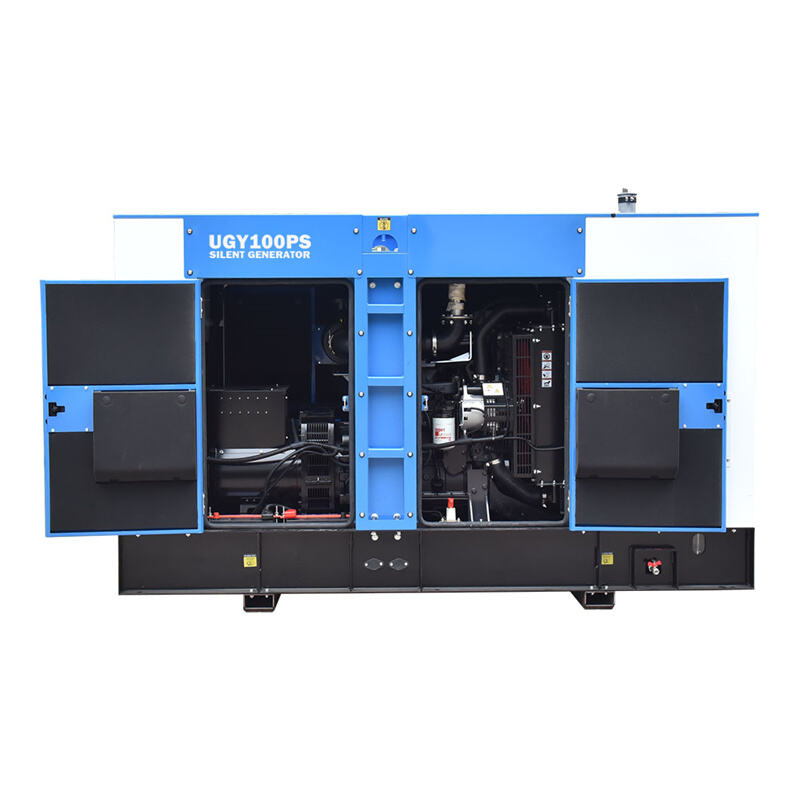

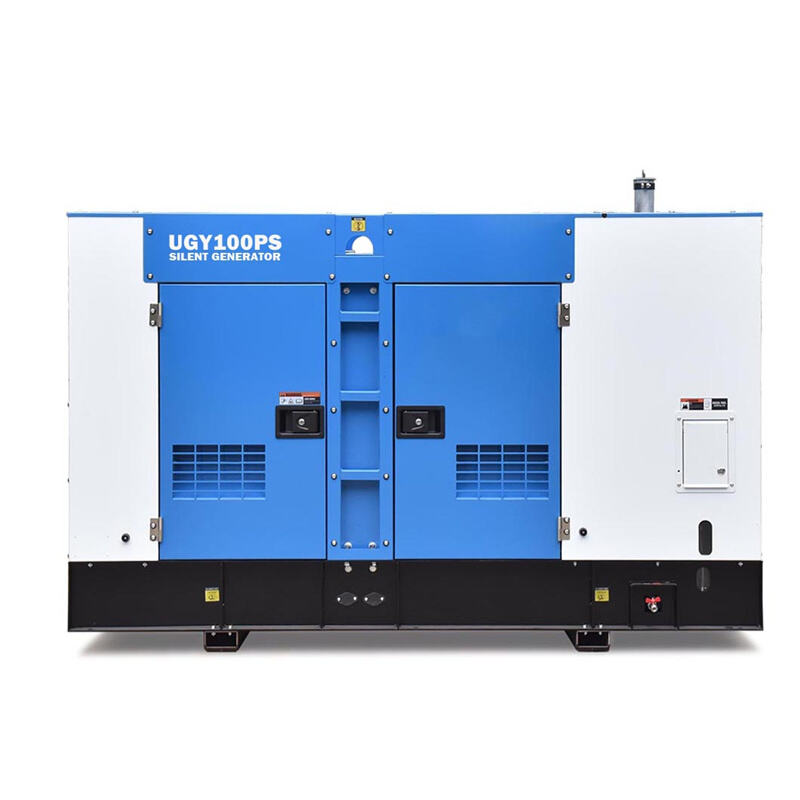

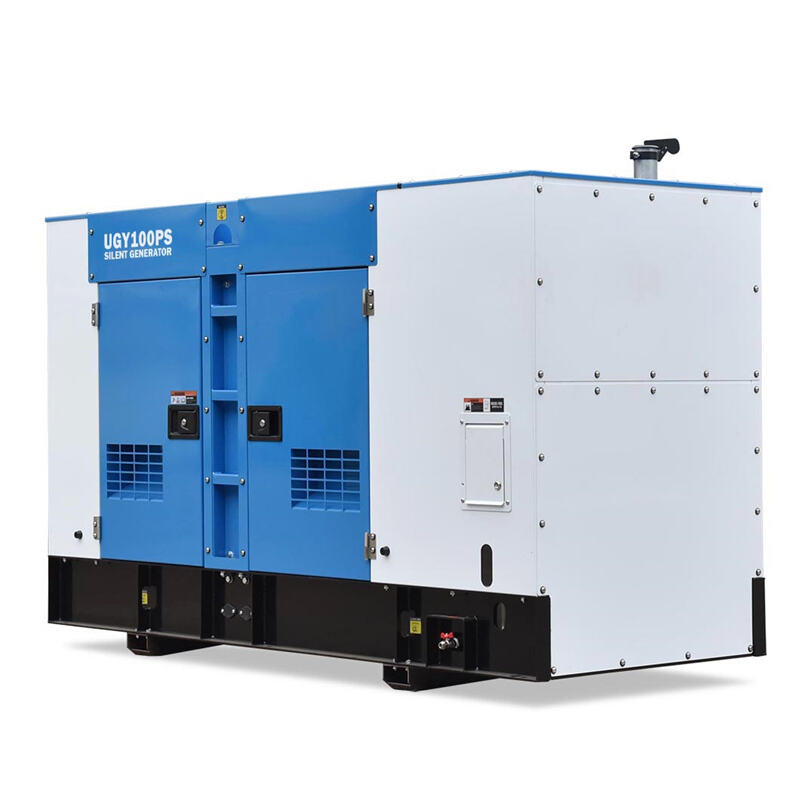

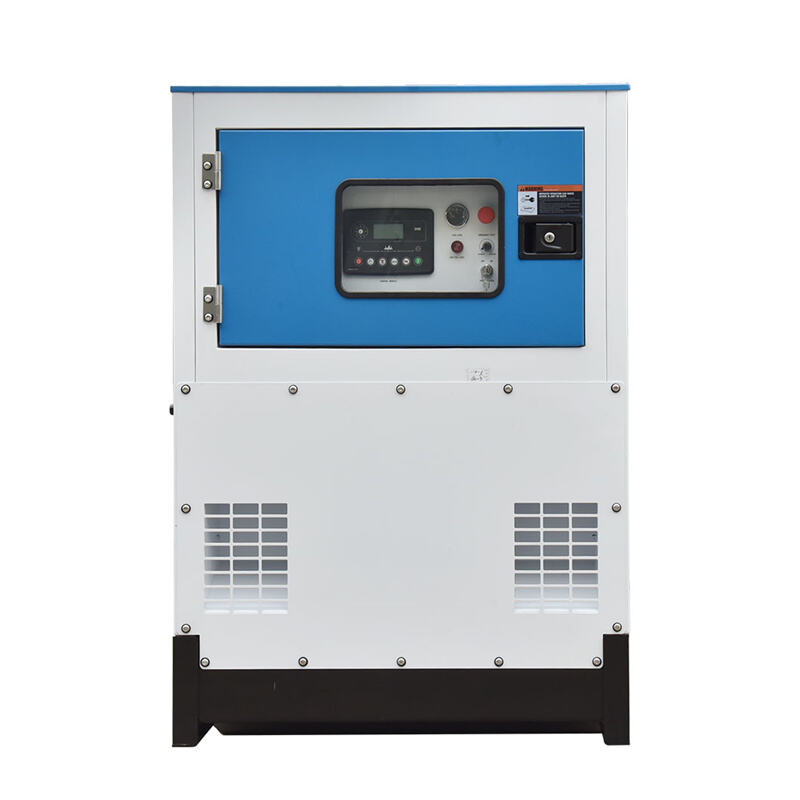

PRIME POWER: 80KW 100KVA
ENGINE: Perkins 1104C-44TAG2
ALTERNATOR: UCI274C
DIMENSION(mm): 2700*1050*1500
Description
Perkins 9-2250KVA
UK brand, international famous option
*High emission standard-EU ll-lA, EPA Tier 2-4
*Wide Power capacity range 9KVA-2250KVA, covers all ordinary power requirements from home use to power generation station.
Specifications
| Perkins 50HZ | |||||
| MODEL | PRIME POWER | ENGINE | ALTERNATOR | DIMENSION | |
| kw | kva | mm | |||
| UGY9PS | 7 | 9 | 403D-11G | SOL1-H1 | 1485*700*1000 |
| UGY13PS | 10 | 13 | 403A-15G1 | SOL1-P1 | 1485*700*1000 |
| UGY13PS | 10 | 13 | 403D-15G | SOL1-P1 | 1485*700*1000 |
| UGY15PS | 12 | 15 | 403A-15G2 | SOL1-P1 | 1670*780*950 |
| UGY20PS | 16 | 20 | 404A-22G1 | SOL2-G1 | 1800*780*1060 |
| UGY20PS | 16 | 20 | 404D-22G | SOL2-G1 | 1800*780*1060 |
| UGY25PS | 20 | 25 | 404D-22TG | SOL2-P1 | 2000*850*1060 |
| UGY30PS | 24 | 30 | 1103A-33G | SOL2-P1 | 2280*900*1190 |
| UGY45PS | 36 | 45 | 1103A-33TG1 | S1L2-N1 | 2280*900*1190 |
| UGY60PS | 48 | 60 | 1103A-33TG2 | S1L2-Y1 | 2500*950*1500 |
| UGY65PS | 52 | 65 | 1104A-44TG1 | UC1224F | 2500*1050*1500 |
| UGY80PS | 64 | 80 | 1104A-44TG2 | UCI224G | 2500*1050*1500 |
| UGY80PS | 64 | 80 | 1104C-44TAG1 | UCI224G | 2700*1050*1500 |
| UGY100PS | 80 | 100 | 1104C-44TAG2 | UCI274C | 2700*1050*1500 |
| UGY135PS | 108 | 135 | 1106A-70TG1 | UCI274E | 2900*1130*1600 |
| UGY150PS | 120 | 150 | 1106A-70TAG2 | UC1274F | 2900*1130*1600 |
| UGY180PS | 144 | 180 | 1106A-70TAG3 | UCI274G | 2900*1130*1600 |
| UGY200PS | 160 | 200 | 1106A-70TAG4 | UCI274H | 2900*1130*1600 |
| UGY230PS | 184 | 230 | 1206A-E70TTAG2 | UCDI274] | 3700*1300*1700 |
| UGY250PS | 200 | 250 | 1206A-E70TTAG3 | UCDI274K | 3700*1300*1700 |
| UGY300PS | 240 | 300 | 1706A-E93TAG1 | S4L1D-D | 3700*1300*1750 |
| UGY350PS | 280 | 350 | 2206C-E13TAG2 | S4L1D-E | 4200*1400*2100 |
| UGY400PS | 320 | 400 | 2206C-E13TAG3 | S4L1D-F | 4200*1400*2100 |
| UGY450PS | 364 | 455 | 2506C-E15TAG1 | S5L1D-C4 | 4800*1600*2400 |
| UGY500PS | 400 | 500 | 2506C-E15TAG2 | S5L1D-D4 | 4800*1600*2400 |
| UGY600PS | 473 | 591 | 2806C-E18TAG1A | S5L1D-E4 | 5200*1600*2400 |
| UGY650PS | 520 | 650 | 2806A-E18TAG2 | S5L1D-F4 | 5200*1600*2400 |
| UGY710PS | 570 | 712.5 | 2806A-E18TTAG4 | S6L1D-C4 | 5200*2000*2500 |
| UGY775PS | 620 | 775 | 2806A-E18TTAG5 | S6L1D-C4 | 5200*2000*2500 |
| UGY800PS | 640 | 800 | 4006-23TAG3A | S6L1D-C4 | 5200*2000*2500 |
| UGY900PS | 720 | 900 | 4008TAG1A | S6L1D-D4 | 6060*2440*2600 |
| UGY1000PS | 818 | 1022 | 4008TAG2 | S6L1D-E4 | 6060*2440*2600 |
| UGY1125PS | 900 | 1125 | 4008-30TAG3 | S6L1D-F4 | 6060*2440*2600 |
| UGY1250PS | 1000 | 1250 | 4012-46TWG2A | S6L1D-G4 | 6060*2440*2600 |
| UGY1365PS | 1092 | 1364 | 4012-46TWG3A | S6L1D-H4 | 6060*2440*2600 |
| UGY1500PS | 1200 | 1500 | 4012-46TAG2A | S7L1D-C41 | 6060*2440*2600 |
| UGY1700PS | 1368 | 1710 | 4012-46TAG3A | S7L1D-E41 | 6060*2440*2600 |
| UGY1850PS | 1480 | 1850 | 4016TAG1A | S7L1D-F41 | 6060*2440*2600 |
| UGY2000PS | 1600 | 2000 | 4016TAG2A | S7L1D-G41 | 7300*2440*2800 |
| UGY2250PS | 1800 | 2250 | 4016-61TRG3 | S7L1D-J41 | 7300*2440*2800 |
