Overview
| Place of Origin: | ZheJiang,China |
| Brand Name: | UNIV |
| Model Number: | UST-1200 |
| Certification: | CE/ISO9001 |
| Minimum Order Quantity: | 1 unit |
| Delivery Time: | 30-40day |
| Warranty | 1 year |
Quick Detail

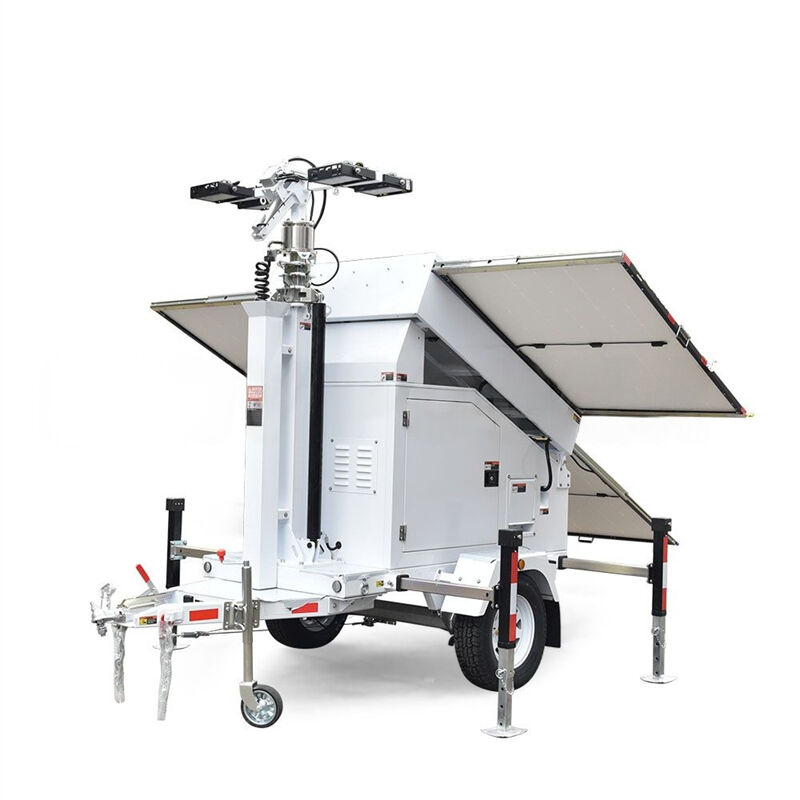

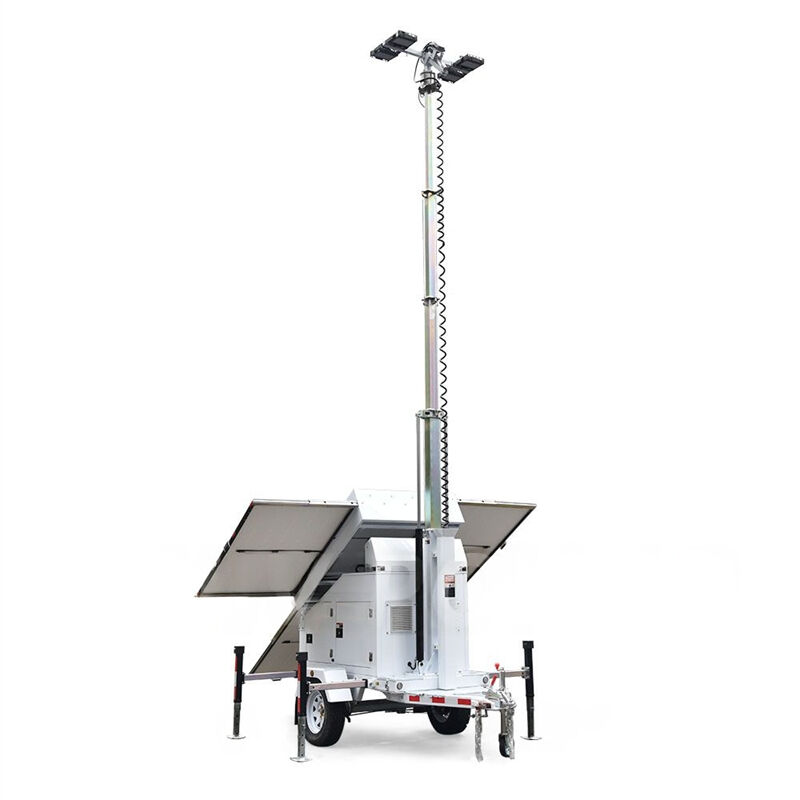

UST-1200 mobile solar trailer devoted into clean energy's application in emergency use lighting, surveillance and telecom. It is towable, easy to deploy and without fuel cost, no noise, no smell……
Description
Customer from work site is not satisfied with 3panels model,they need brighter light and longer running time.4 panels model is born at the right moment and do the best balance with cost and function.
UST-1200 SERIES：
1. 4 pcs Solar panel design trailer
2.Optional 7-12m manual / electric telescopic mast
3. Mobile trailer with Australian / European / American standard
Specifications
| ECO &PLUS | PLUS &PLUG | PLUS &AC | AC&&HYDRAULIC | PLUG &HEAVY | |
| Model | UST-1200S5MS/D | UST-1200PS5MS/D | UST-1200AS5MS/D | UST-1200AS5HD | UST-1200PS9HD |
| Type of Lights | 6X100W LED | 6X100W LED | 6X100W LED | 6X100W LED | 6X150W LED |
| Lights Output | DC24V,90,000LUMS | DC24V,90,000LUMS | DC24V,90,000LUMS | DC24V,90,000LUMS | DC24V,90,000LUMS |
| Solar Panel | Monocrystalline Silicon | MonocrystallineSilicon | Monocrystalline Silicon | Monocrystalline Silicon | MonocrystallineSilicon |
| Rate Power | 4x455W | 4x455W | 4x455W | 4x⁴55W | 4x455W |
| PV Controller | MPPT 60A | MPPT 60A | MPPT 60A | MPPT 60A | MPPT 60A |
| Type of Battery | Gel-battery | Gel-battery | Gel-battery | Gel-battery | Gel-battery |
| No.of Battery | 8X200AH DC12V | 8X200AH DC12V | 8X200AH DC12V | 8X200AH DC12V | 8X250AH DC12V |
| Battery Capacity | 400AH | 400AH | 400AH | 400AH | 500AH |
| System Voltage | DC48V | DC48V | DC48V | DC48V | DC48V |
| Mast | Telescopic,Galvanized | Telescopic,Galvanized | Telescopic,Galvanized | Telescopic,Galvanized | Telescopic,Galvanized |
| Maximum Height | 7m/9m optional | 7m/9m optional | 7m/9m optional | 7m | 9m/10m/12mOptional |
| Wind Rating Speed | 100KM/H | 100KM/H | 100KM/H | 100KM/H | 100KM/H |
| Lifting System | Manual/Electric optional | Manual/Electricoptional | Manual/Electric optional | Hydraulic | Hydraulic |
| AC Output | / | 1 | 2000W | 2000W | / |
| Battery Charger | / | 2x1500W | 32A | 32A | 2x1500W |
| Axle NO: | Single axle/Dual axle | Single axle /Dualaxle | Single axle /Dual axle | Single axle /Dual axle | Dual axle |
| Tyre and Rim | 15 inch | 15 inch | 15 inch | 15 inch | 15 inch |
| Stabilisers | 4PCS Manual | 4PCS Manual | 4PCS Manual | 4PCS Manual | 4PCS Manual |
| Tow Hitch | 50mm ball/70mm Ring | 50mm ball /70mmRing | 50mm ball/70mm Ring | 50mm ball /70mm Ring | 50mm ball/70mmRing |
| Color | Customized | Customized | Customized | Customized | Customized |
| Working Temperature | -35-60 C | -35-60 C | -35-60 C | -35-60 C | -35-60 C |
| Operate Time | 22 hours | 22 hours | 22 hours | 22 hours | 18 hours |
| Charge Time (Solar) | 10 hours | 10 hours | 10 hours | 10 hours | 12 hours |
| Charge Time(AC) | / | 11 hours | 18 hours | 18 hours | 14 hours |
| Dimensions | 3630x2240×2525mm @7m | 3630x2240x2525mm | 3630x2240×2525mm @7m | 3630×2240×2525mm @7m | 3787x2240x2410mm@9m |
| 3630×2240×2860mm @9m | @7m | 3630×2240x2860mm @9m | |||
| Dry Weight | 1660kg | 1680kg | 1680kg | 1790kg | 1975kg |
| 20GP container | 2units | 2units | 2units | 2units | 2units |
| 40HQ container | 4units | 4units | 4units | 4units | 4units |
