High Efficiency 20UDM Underslung Dual Container Power Supply Diesel Generator for Reefer Containers
- Overview
- Quick Detail
- Description
- Specifications
- Recommended Products
Overview
| Place of Origin: | ZheJiang,China |
| Brand Name: | UNIV |
| Model Number: | 20UDM |
| Certification: | CE/ISO9001 |
| Minimum Order Quantity: | 1 unit |
| Delivery Time: | 30-40day |
| Warranty | 1 year |
Quick Detail

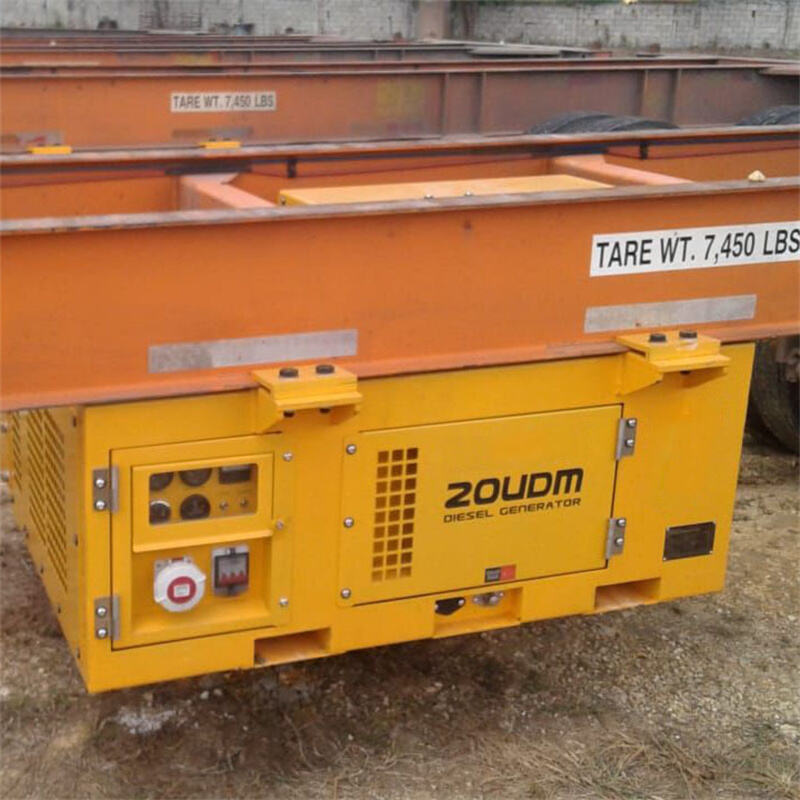

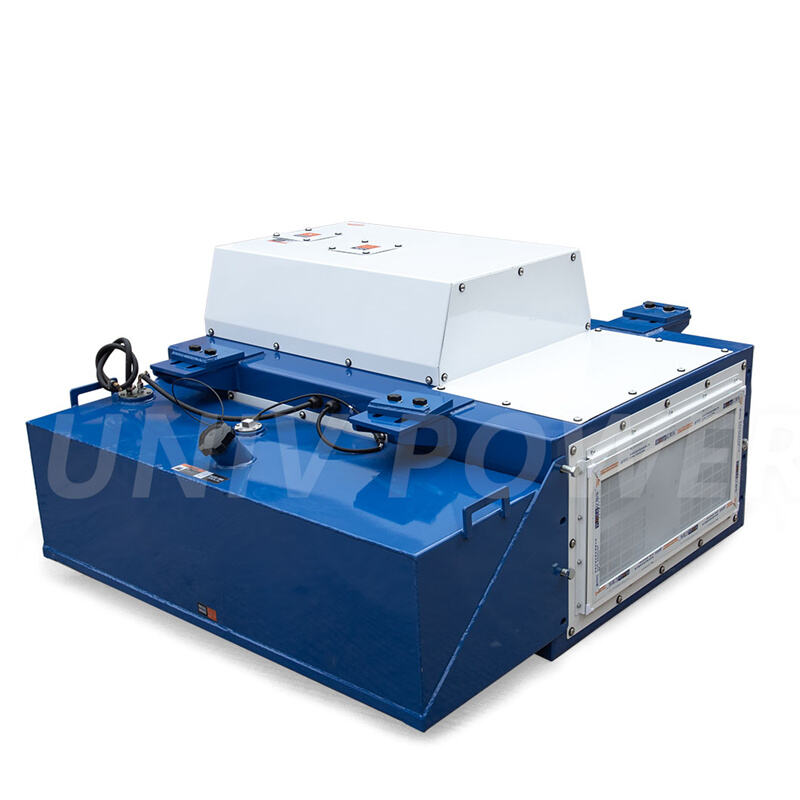

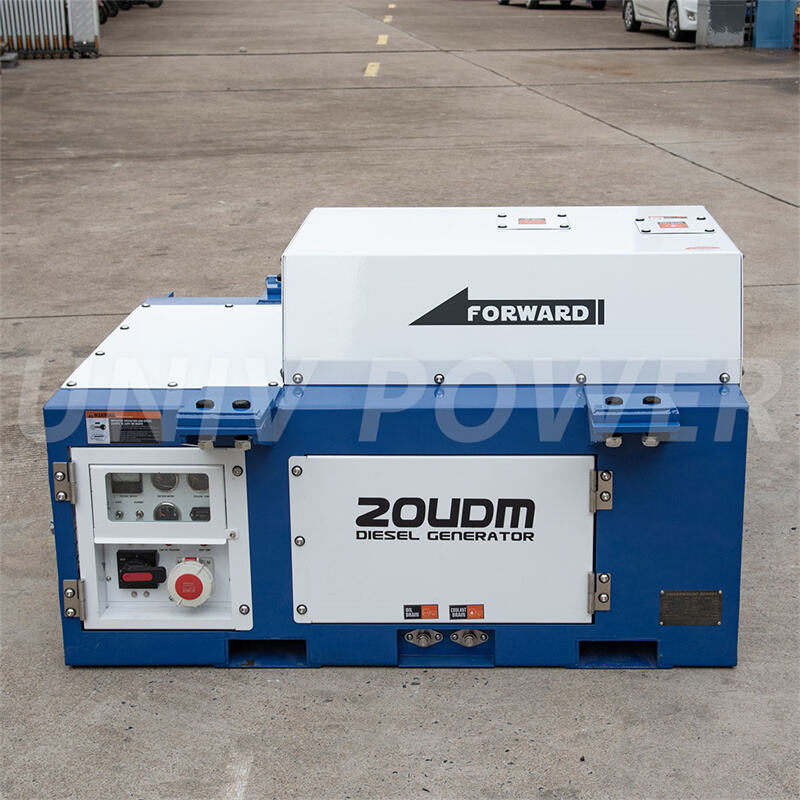

The 20UDM Underslung Diesel Genset is designed to provide reliable and efficient power to reefer containers during transportation. Featuring a Perkins 404D-22G engine, this undermount genset offers an impressive low fuel consumption rate of just 3.1L/h, ensuring cost savings for long-haul shipping. The compact design (weighing only 680kg) makes it an excellent choice for fleets that frequently change containers, as it easily fits into tight spaces and is securely mounted on the chassis.

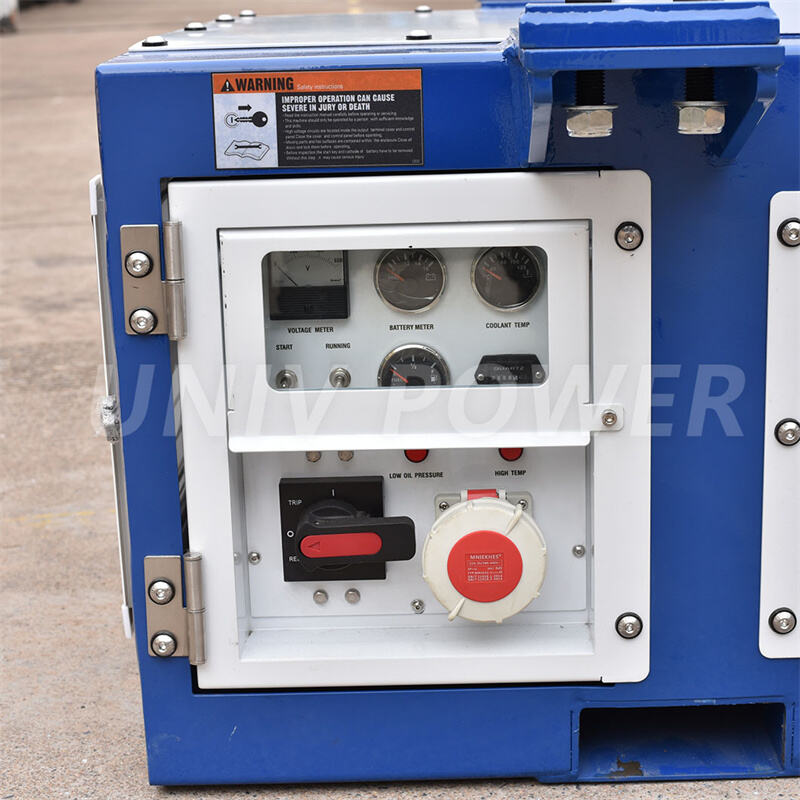

The genset’s advanced controller ensures smooth operation and easy maintenance, while its automatic voltage regulation provides consistent power to sensitive equipment. With a fuel tank capacity of 180L, the genset can operate for extended periods without the need for frequent refueling, making it ideal for remote locations or long-distance transport.
Description
Efficient Power Output: Delivers 20kW / 25kVA for optimal container refrigeration.
Low Fuel Consumption: Operates at just 3.1L/h, reducing operating costs.
Quiet Operation: 74 dBA noise level ensures minimal disturbance in sensitive environments.
Dual Power Supply: Capable of powering two reefer containers simultaneously for increased efficiency.
Compact & Lightweight: 680kg design is ideal for space-saving and easy installation on trucks.
Reliable Engine: Powered by the Perkins 404D-22G engine, known for its durability and performance.
Long-Lasting Fuel Capacity: The 180L fuel tank supports long-term use without refueling.
Versatile Application: Perfect for cold chain logistics, remote power supply, and container transportation.
Specifications
| Generator Model | 20ESX | 20UDM |
| Rated Power(KW) | 20kw/25kva | 20kw/25kva |
| Frequency(HZ) | 60 | 60 |
| Voltage (V) | 460V | 460V |
| Noice Level(dBA) | 74/1M | 74/1M |
| Amps(A) | 23.5A | 23.5A |
| Engine | water cooled,4 stroke | water cooled,4 stroke |
| Model | 404D-22G(Perkins) | 404D-22G(Perkins) |
| 12hrs Rated Power(KW) | 21.3 | 21.3 |
| Cylinder | 4 | 4 |
| Borexstroke(mm) | 84×100 | 84×100 |
| Intake Method | Nature Intake | Nature Intake |
| Displacement(L) | 2.216 | 2.216 |
| Fuel consumption(L/h) | 3.1L/h | 3.1L/h |
| Cooling starting method | Electric start | Electric start |
| Engine manufacturer | Perkins | Perkins |
| Alternator | MeccAlte Brushless,Self exciting | MeccAlte Brushless,Self exciting |
| Rated power(kVA) | 25kw/31KVA | 25kw/31KVA |
| Rated currency(A) | 31.5 | 31.5 |
| Rated voltage(V) | 460V | 460V |
| Power factor(coso) | 0.8lagging | 0.8lagging |
| Phase /Rotary speed | 3-phase,1800rpm | 3-phase,1800rpm |
| Excitation | Self-exciting | Self-exciting |
| Voltage regulation | Automatic | Automatic |
| Net weight (kg) | 1000 | 680 |
| Packing size L×W×H(mm) | 2368x729x1073 | 1390×1613x828 |
| Fuel tank capacity(L) | 310 | 180 |
