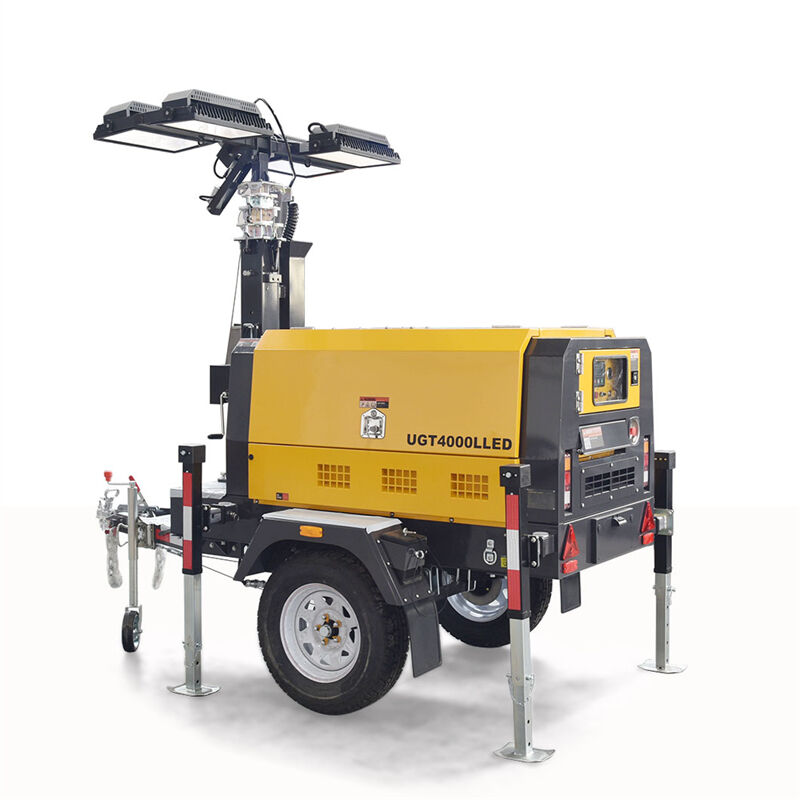

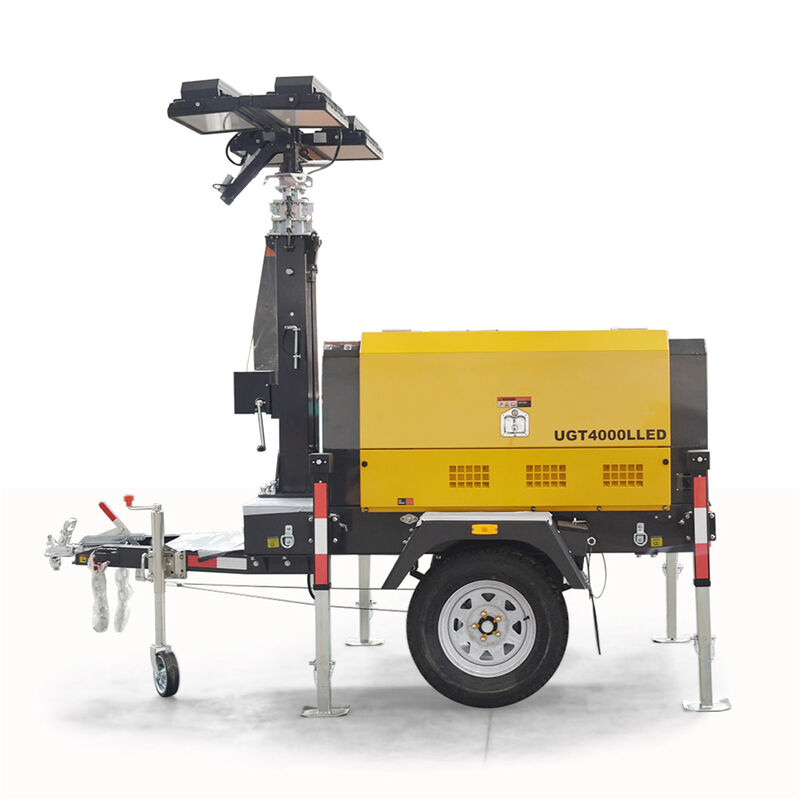

High-Quality Perkins Engine Hydraulic Lighting Tower with Diesel Generator for Construction & Outdoor Events
- Overview
- Quick Detail
- Description
- Specifications
- Recommended Products
Overview
| Place of Origin: | ZheJiang,China |
| Brand Name: | UNIV |
| Model Number: | UGT4000PMH |
| Certification: | CE/ISO9001 |
| Minimum Order Quantity: | 1 unit |
| Delivery Time: | 30-40day |
| Warranty | 1 year |
Quick Detail
The Perkins Engine Hydraulic Lighting Tower with a diesel generator is engineered for superior performance in remote work sites, construction zones, emergency situations, and outdoor events. Combining reliable Perkins engine power with hydraulic technology, this mobile lighting tower offers an exceptional lighting solution, designed to operate under challenging environmental conditions.
Description
The UGT-4000PMH lighting tower is designed with safety at its core and built to deliver the highest reliability and enhance productivity to the civil, road construction, mining and rental industries.
Specifications
| MODEL | UGT-4000PMH | UGT-4000PLED | |
| Genset rated Power(KW) | 6 | 6 | |
| Dimension | Lenth(mm) | 3031 | 3031 |
| Width(mm) | 1488 | 1488 | |
| Height(mm) | 3327 | 3220 | |
| Height extended fully(m) | 7.5m(9m optional) | 7.5m(9m optional) | |
| Gross Weight(kg) | 1300 | 1300 | |
| Engine | Engine Model | Perkins 403D-11G | Perkins 403D-11G |
| Rated Speed(rpm) | 1500/1800 | 1500/1800 | |
| Cylinder No. | 3 | 3 | |
| Engine type | 4 stroke,water-cooled | 4 stroke,water-cooled | |
| Air intake methed | Naturally aspirated | Naturally aspirated | |
| Emission | Tier3 | Tier3 | |
| Alternator | Model | MeccAlte LT3N-130/4 | MeccAlte LT3N-130/4 |
| Frequency (HZ) | 50/60 | 50/60 | |
| Rated voltage | 230V(50HZ),240(60HZ)AC | 230V(50HZ),240(60HZ)AC | |
| Insulation class | Class H | Class H | |
| Protection grade | IP23 | IP23 | |
| Mast and Light | Light type | Metal Halide | LED |
| Luminous Flux | 360000 LM | 210000 LM | |
| Light Qty x WATT | 4×1000W | 4×350W | |
| Mast Sections | 5 | 5 | |
| Mast lifting method | Manual/Electric witch/Hydraulic | Manual/Electric witch/Hydraulic | |
| Light Rotation | No/355 degrees optional | No/355 degrees optional | |
| Light Angle Adjust | Electric actuator | Electric actuator | |
| Trailer | Suspension | Leaf spring with mechanical braker | Leaf spring with mechanical braker |
| Towing Bar | A frame with Jockey wheel | Foldable Tow bar with Jockey wheel | |
| Stabilizing Leg | 4Pcs Manual Stabilizing Leg | 4Pcs Manual Stabilizing Leg | |
| Rim &Tyre | 14" | 14" | |
| Towing coupler | 50mm ball /70mm Ring | 50mm ball/70mm Ring | |
| Tail Lights | complex tail light | complex tail light | |
| Max Towing speed | 80km/h | 80km/h | |
| Other Item | Fuel Tank Type | Metal | Metal |
| Fuel Tank capacity | 45L | 45L | |
| Operating hours | 30 Hrs | 30 Hrs | |
| Controller | UK DEEPSEA DSE4520 | UK DEEPSEA DSE4520 | |
| Output | 2 receptacles | ||
| Max.Against Wind | 20 m/s | 20 m/s | |
| Noise level dBA@7M | 63dB(A)at 7m | 63dB(A)at 7m | |
| Max.Loading Qty by 40HQ | 14 | 14 | |
