Overview
| Place of Origin: | ZheJiang,China |
| Brand Name: | UNIV |
| Model Number: | 20UDM |
| Certification: | CE/ISO9001 |
| Minimum Order Quantity: | 1 unit |
| Delivery Time: | 30-40day |
| Warranty | 1 year |
Quick Detail

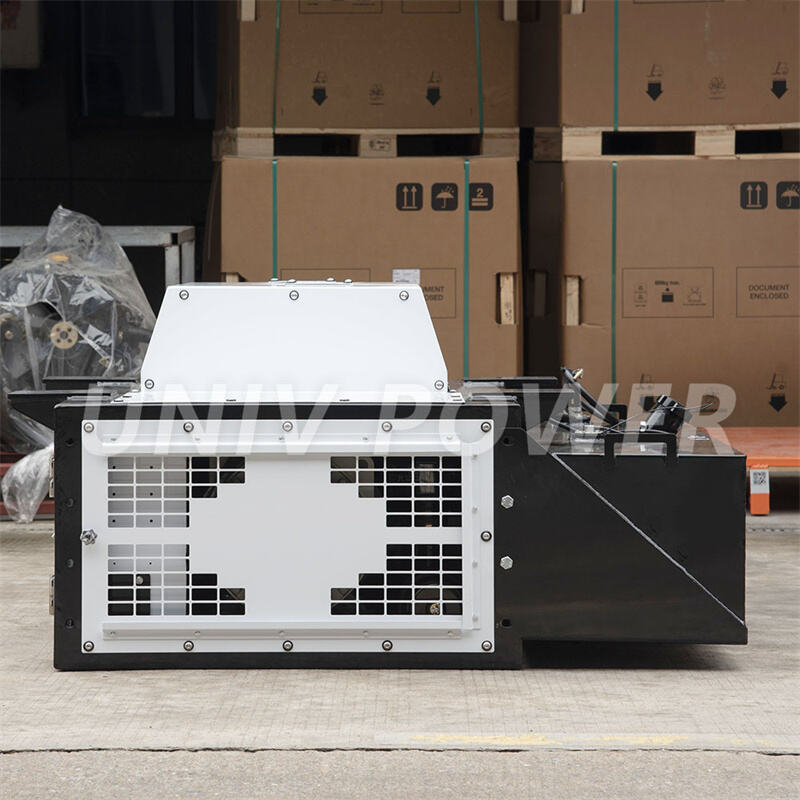

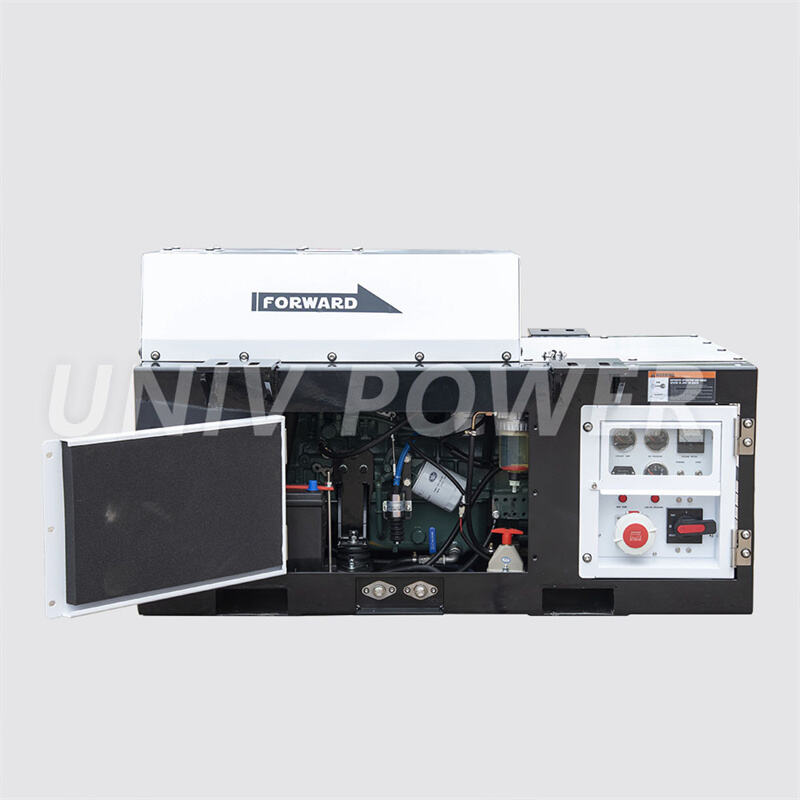

Reefer genset
A generator can be an important addition to your refrigerated container. A diesel generator is able to run a container for up to 5 days without the need to refill fuel.
UNIV we are reefer genset manufacturer, since 2007yrs

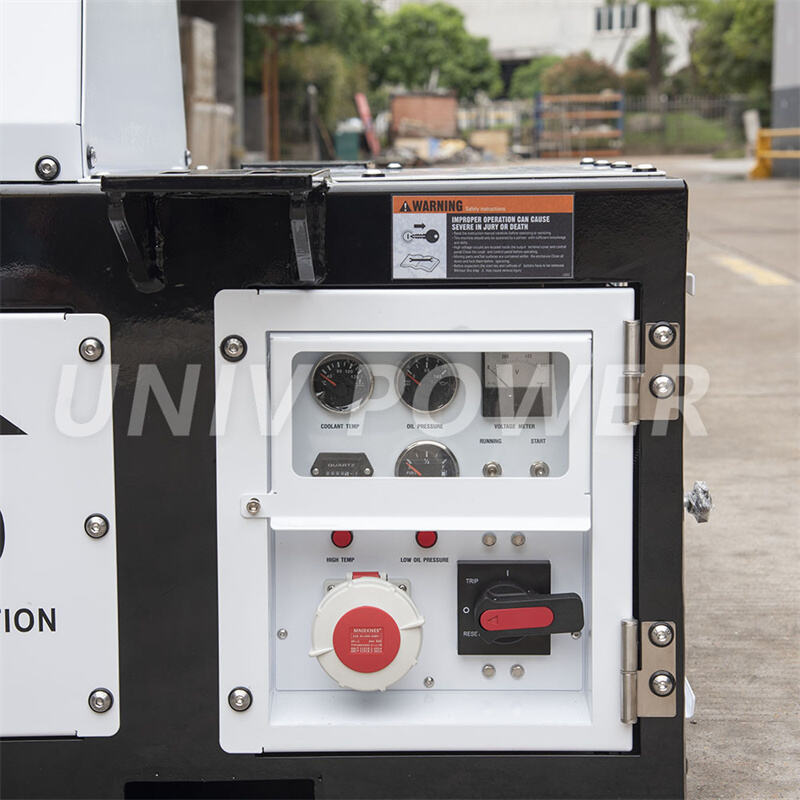

Our genset has an advanced controller and the genset is fairly easy to maintain. In addition, we are proud of the performance, including the low fuel consumption compared to competitors, the lower weight and the possibility to supply two containers with power at the same time.
Description
What Types Of Generators Are There?
Underslung Genset
undermount generator is firmly anchored to a truck’s container chassis. This type of generator is suitable for refrigerated containers as well as for heating cargo. An undermount generator is especially suitable if you want to transport by frequently changing containers by truck.
A generator of this type has a weight of around 700 kgs .
Clip-on Genset
Clip-on genset is a generator that is linked to a reefer container to provide power during transport or when shore power is not available. This addition to a reefer container is ideal for events, catering or as temporary (additional) cooling capacity.
Specifications
| Generator Model | 20ESX | 20UDM |
| Rated Power(KW) | 20kw/25kva | 20kw/25kva |
| Frequency(HZ) | 60 | 60 |
| Voltage (V) | 460V | 460V |
| Noice Level(dBA) | 74/1M | 74/1M |
| Amps(A) | 23.5A | 23.5A |
| Engine | water cooled,4 stroke | water cooled,4 stroke |
| Model | 404D-22G(Perkins) | 404D-22G(Perkins) |
| 12hrs Rated Power(KW) | 21.3 | 21.3 |
| Cylinder | 4 | 4 |
| Borexstroke(mm) | 84×100 | 84×100 |
| Intake Method | Nature Intake | Nature Intake |
| Displacement(L) | 2.216 | 2.216 |
| Fuel consumption(L/h) | 3.1L/h | 3.1L/h |
| Cooling starting method | Electric start | Electric start |
| Engine manufacturer | Perkins | Perkins |
| Alternator | MeccAlte Brushless,Self exciting | MeccAlte Brushless,Self exciting |
| Rated power(kVA) | 25kw/31KVA | 25kw/31KVA |
| Rated currency(A) | 31.5 | 31.5 |
| Rated voltage(V) | 460V | 460V |
| Power factor(coso) | 0.8lagging | 0.8lagging |
| Phase /Rotary speed | 3-phase,1800rpm | 3-phase,1800rpm |
| Excitation | Self-exciting | Self-exciting |
| Voltage regulation | Automatic | Automatic |
| Net weight (kg) | 1000 | 680 |
| Packing size L×W×H(mm) | 2368x729x1073 | 1390×1613x828 |
| Fuel tank capacity(L) | 310 | 180 |
