Overview
| Place of Origin: | ZheJiang,China |
| Brand Name: | UNIV |
| Model Number: | UST-2400 |
| Certification: | CE/ISO9001 |
| Minimum Order Quantity: | 1 unit |
| Delivery Time: | 30-40day |
| Warranty | 1 year |
Quick Detail

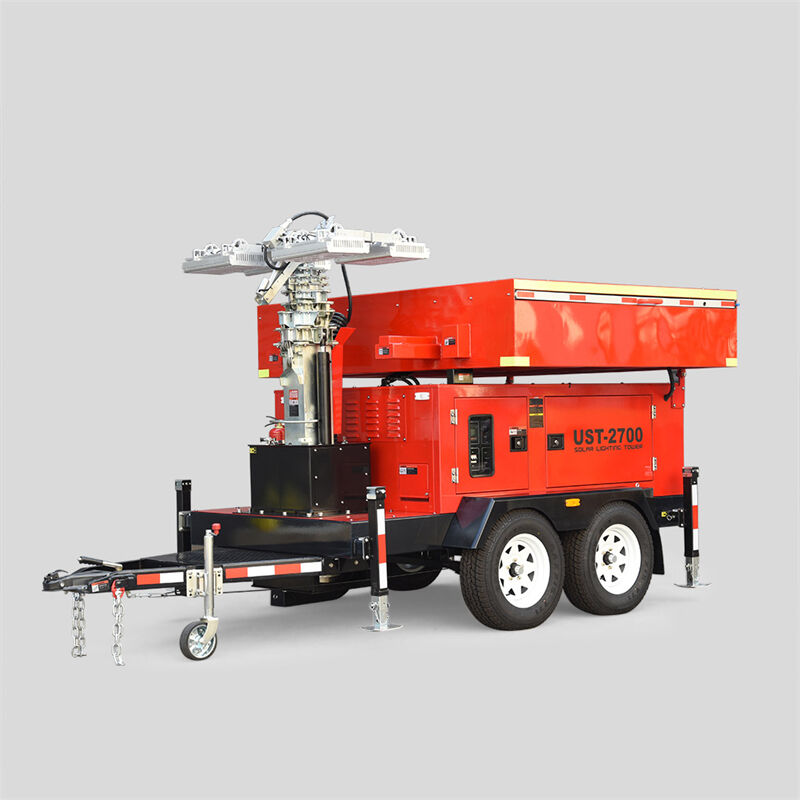

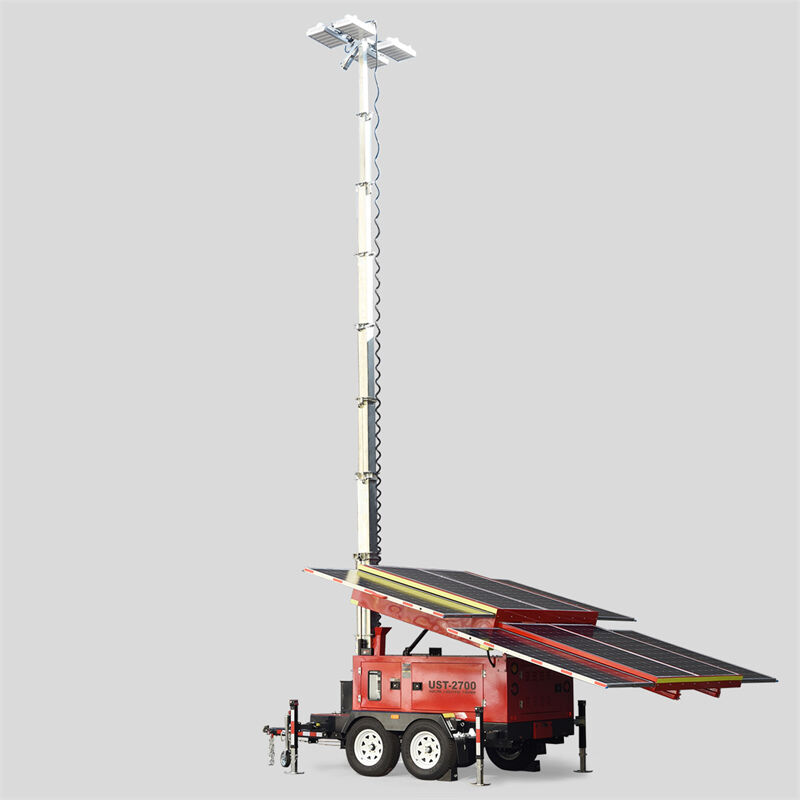

UST-2400 mobile solar trailer devoted into clean energy's application in emergency use lighting, surveillance and telecom. It is towable, easy to deploy and without fuel cost, no noise, no smell……
Description
Total 3640W mobile power system is the biggest mobile solar off-grid power system we do,it’s could afford basic worksite consumption.1600W high light LED support you lighting every corner.,also support AC power output to tools.
UST-2400 SERIES：
1.8 pcs Solar panel design trailer
2.Optional 7-12m manual / electric telescopic mast
3.Mobile trailer with Australian / European / American standard
Specifications
| Model | UST-2400E5MD | UST-2400A5MD | UST-2400AS5MD | UST-2400ES5HD | UST-2400AS9HD |
| Type of Lights | 6X100W LED | 6X150W LED | 6X200W LED | 6X150W LED | 6X350W LED |
| Lights Output | DC48V,90,000LUMS | DC48V,135,000LUMS | DC48V,135,000LUMS | DC48V,135,000LUMS | DC48V,315,000LUMS |
| Solar Panel | Monocrystalline Silicon | Monocrystalline Silicon | Monocrystalline Silicon | Monocrystalline Silicon | Monocrystalline Silicon |
| Rate Power | 8x455W | 8x455W | 8x455W | 8x455W | 8x455W |
| PV Controller | MPPT 60A | MPPT 60A | MPPT 60A | MPPT 60A | MPPT 60A |
| Type of Battery | Gel-battery | Gel-battery | Gel-battery | Gel-battery | Gel-battery |
| No.of Battery | 12×200AH DC12V | 12X200AH DC12V | 12X250AH DC12V | 12X250AH DC12V | 16×250AH DC12V |
| BatteryCapacity | 600AH | 600AH | 750AH | 750AH | 1000AH |
| System Voltage | DC48V | DC48V | DC48V | DC48V | DC48V |
| Mast | Telescopic,Galvanized | Telescopic,Galvanized | Telescopic,Galvanized | Telescopic,Galvanized | Telescopic,Galvanized |
| MaximumHeight | 7m/9m Optional | 7m/9m Optional | 7m/9m Optional | 7m | 9m/10m/12m Optional |
| Wind RatingSpeed | 100KM/H | 100KM/H | 100KM/H | 100KM/H | 100KM/H |
| Lifting System | Manual/Electric | Manual/Electric | Manual/Electric | Hydraulic | Hydraulic |
| AC Output | 1 | 3000W | 5000W | 5000W | 3000W |
| Battery Charger | / | 34A | 40A | 40A | 34A |
| Axle NO: | Double axle | Double axle | Double axle | Double axle | Double axle |
| Tyre and Rim | 15 inch | 15 inch | 15 inch | 15 inch | 15 inch |
| Stabilisers | 4PCS Manual | 4PCS Manual | 4PCS Manual | 4PCS Manual | 4PCS Manual |
| Tow Hitch | 50mm ball /70mm Ring | 50mm ball /70mm Ring | 50mm ball /70mm Ring | 50mm ball /70mm Ring | 50mm ball /70mm Ring |
| Color | Customized | Customized | Customized | Customized | Customized |
| WorkingTemperature | -35-60 C | -35-60 C | -35-60 C | -35-60 C | -35-60 C |
| Operate Time | 33 hours | 22 hours | 21 hours | 21 hours | 24 hours |
| Charge Time(Solar) | 7 hours | 7 hours | 9 hours | 9 hours | 12 hours |
| Charge Time(AC) | / | 14 hours | 14 hours | 14 hours | 14 hours |
| Dimensions | 4170x2215x2525mm @7m | 4170x2215x2525mm @7m | 4170x2215x2525mm @7m | 4170x2215x2525mm | 4170×2215xx2415mm |
| 4170×2215×2860mm @9m | 4170x2215x2860mm @9m | 4170×2215×2860mm @9m | |||
| Dry Weight | 1985kg | 2550kg | 2650kg | 2950kg | 3200kg |
| 20GP container | 2units | 2units | 2units | 2units | 2units |
| 40HQ container | 4units | 4units | 4units | 4units | 4units |
